Veeam Backup & Replication v7.0 Sistem Gereksinimleri 4


Merhaba

Daha önceki yazimizda Veeam Backup & Replication 7 hem Vmware, hem de Microsoft Hyper-V sanallaştirma platformları için geliştirilmiş backuplama yaziliminin özelliklerinden ve sistem gereksinimlerinden bahsetmiştik. Bu yazimizda da Veeam Backup & Replication 7 sistem ve donanım gereksinimleri sizlerle paylaşıyor olacağım.

VMware Infrastructure

Platforms

  • vSphere 5.0, 5.1
  • vSphere 4.x
  • Infrastructure 3.5 ( VI3.5 )

Hosts

  • ESXi 5.0, 5.1
  • ESX(i) 4.x
  • ESX(i) 3.5

Software

  • vCenter Server 5.0, 5.1 ( Optional )
  • vCenter Server 4.x ( Optional )
  • Virtual Center 2.5 ( Optional )

VMware Virtual Machines Virtual Hardware

  • All types of virtual hardware are supported.
  • Virtual machines with disks engaged in SCSI bus sharing are not supported, because VMware does not support snapshotting such VMs.
  • RDM virtual disks in physical mode, Independent disks and disks connected via in-guest iSCSI initiator are not supported, and are skipped from processing automatically.

OS

  • All operating systems supported by VMware.
  • Application-aware processing is supported for Microsoft Windows XP ( 32bit only ), Microsoft Windows 2003 and later operating systems. •

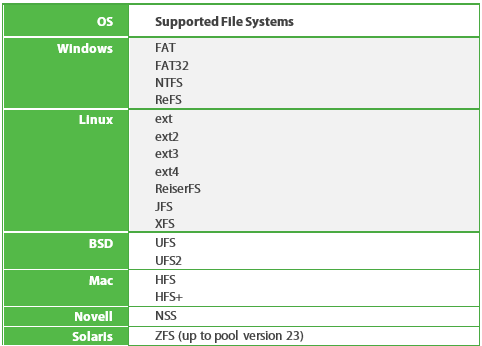

  • File level restore is supported for the following file systems, including Microsoft Windows LDM ( Logical Disk Manager ) dynamic disks and Linux LVM ( Logical Volume Manager ):

1

Software

  • VMware Tools  ( Optional )

Microsoft Infrastructure Platforms

  • Windows Server 2012
  • Windows Server 2008 R2 Service Pack 1

Hosts

  • Windows Server Hyper-V 2012
  • Microsoft Hyper-V Server 2012 ( Free Hypervisor )
  • Windows Server Hyper-V 2008 R2 Service Pack 1
  • Microsoft Hyper-V Server 2008 R2 Service Pack 1  ( Free Hypervisor )

Software

  • Microsoft System Center Virtual Machine Manager 2012 Service Pack 1 ( Optional )
  • Microsoft System Center Virtual Machine Manager 2008 R2 Service Pack 1 ( Optional )

Hyper-V Virtual Machines

Virtual Hardware

  • All types of virtual hardware are supported.
  • Pass-through virtual disks and disks connected via in-guest iSCSI initiator are not supported, and are skipped from processing automatically.

OS

  • All operating systems supported by Hyper-V are supported.
  • Application-aware processing is supported for Microsoft Windows 2003 and later operating systems.

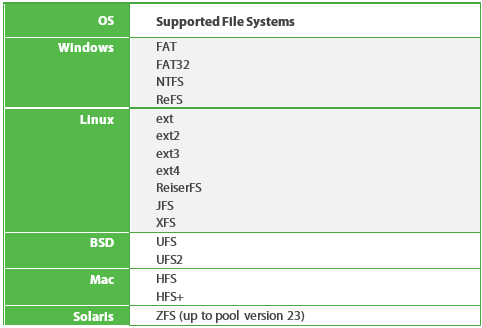

  • File level restore is supported for the following file systems, including Microsoft Windows LDM (Logical Disk Manager) dynamic disks and Linux LVM ( Logical Volume Manager ):

2

Software

  • Hyper-V integration components ( Optional )

Veeam Backup & Replication Server

Hardware

CPU: x86-64 processor.

Memory: 4 GB RAM plus 500 MB RAM for each concurrent job.

Hard Disk Space: 2 GB for product installation. 10 GB per 100 VM for guest file system catalog folder (persistent data). Sufficient free disk space for Instant VM Recovery cache folder (non-persistent data, at least 10 GB recommended).

Network: 1 Gbps LAN for on-site backup and replication, and 1 Mbps WAN for off-site backup and replication recommended. High latency and reasonably unstable WAN links are supported.

OS

64-bit version of the following operating systems is supported:

  • Microsoft Windows Server 2008 Service Pack 2
  • Microsoft Windows Server 2008 R2 Service Pack 1
  • Microsoft Windows 7 Service Pack 1
  • Microsoft Windows Server 2012
  • Microsoft Windows 8

Software

  • Internet Explorer 9.0 or later
  • Microsoft SQL Server 2005/2008/2012 ( SQL 2008 R2 Service Pack 1 Express is included in the setup )
  • System Center Virtual Machine Manager 2008R2/2012 Admin UI ( Optional, to be able to register SCVMM server with Veeam Backup & Replication infrastructure )
  • Microsoft .NET Framework 4.0 ( included in the setup )
  • Windows Installer 4.5 ( included in the setup )
  • Microsoft PowerShell 2.0 or later ( Optional )

Backup Proxy Server

Hardware

CPU: Modern x86 processor (minimum 2 cores). Using faster multi-core processors improves data processing performance, and allows for more tasks to be processed concurrently.

Memory: 2 GB RAM plus 200MB for each concurrent task. Using faster memory (DDR3) improves data processing performance.

Hard Disk Space: 300 MB.

Network: 1 Gbps LAN for on-site backup and replication, and 1 Mbps WAN for off-site backup and replication recommended. High latency and reasonably unstable WAN links are supported.

OS

For VMware backup proxy server, both 32-bit and 64-bit versions of the following operating systems are supported:

  • Microsoft Windows XP Service Pack 3
  • Microsoft Windows Server 2003 Service Pack 2
  • Microsoft Windows Vista Service Pack 2
  • Microsoft Windows Server 2008 Service Pack 2
  • Microsoft Windows Server 2008 R2 Service Pack 1
  • Microsoft Windows 7 Service Pack 1
  • Microsoft Windows Server 2012
  • Microsoft Windows 8

For Hyper-V off-host backup proxy server, only the following operating system is supported:

  • Microsoft Windows Server 2008 R2 Service Pack 1 with Hyper-V role enabled
  • Microsoft Windows Server 2012 with Hyper-V role enabled

Backup Repository Server

Hardware

CPU: x86 processor (x86-64 recommended).

Memory: 4 GB RAM plus 2 GB RAM for each concurrent job.

Network: 1 Gbps LAN for on-site backup and replication, and 1 Mbps WAN for off-site backup and replication recommended. High latency and reasonably unstable WAN links are supported.

OS

Both 32-bit and 64-bit ( Recommended ) versions of the following operating systems are supported:

  • Linux ( SSH and Perl required )
  • Microsoft Windows XP Service Pack 3
  • Microsoft Windows Server 2003 Service Pack 2
  • Microsoft Windows Vista Service Pack 2
  • Microsoft Windows Server 2008 Service Pack 2
  • Microsoft Windows Server 2008 R2 Service Pack 1
  • Microsoft Windows 7 Service Pack 1
  • Microsoft Windows Server 2012
  • Microsoft Windows 8

WAN Accelerator Server

Hardware

CPU: x86-64 processor.

Memory: 8 GB RAM.

Network: 1 Gbps LAN for on-site backup and replication, and 1 Mbps WAN for off-site backup and replication recommended. High latency and reasonably unstable WAN links are supported.

OS

64-bit version of the following operating systems is supported:

  • Microsoft Windows XP Service Pack 3
  • Microsoft Windows Server 2003 Service Pack 2
  • Microsoft Windows Vista Service Pack 2
  • Microsoft Windows Server 2008 Service Pack 2
  • Microsoft Windows Server 2008 R2 Service Pack 1
  • Microsoft Windows 7 Service Pack 1
  • Microsoft Windows Server 2012
  • Microsoft Windows 8

Backup Enterprise Manager

Hardware

Processor: x86-64 processor.

Memory: 2 GB RAM.

Hard Disk Space: 2 GB for product installation plus sufficient disk space to store guest file system catalog from connected backup servers (according to data retention policy).

Network: 1Mbps or faster connection to Veeam Backup & Replication servers.

OS

64-bit version of the following operating systems is supported:

  • Microsoft Windows Server 2008 Service Pack 2
  • Microsoft Windows Server 2008 R2 Service Pack 1
  • Microsoft Windows 7 Service Pack 1
  • Microsoft Windows Server 2012
  • Microsoft Windows 8

Server Software

  • Microsoft Internet Information Services 7.0 or later
  • Microsoft SQL Server 2005/2008/2012 ( SQL 2008 R2 Service Pack 1 Express included in the setup )
  • Microsoft .NET Framework 4.0 ( included in the setup )
  • Windows Installer 4.5 ( included in the setup )

Client Software

  • Microsoft Internet Explorer 9.0, Mozilla Firefox 22.0, Google Chrome 27.0 or later versions
  • Microsoft Excel 2003 or later ( to view Excel reports ).

Veeam Backup Search Server

Hardware

Refer to the Microsoft Search Server system requirements.
OS

Refer to the Microsoft Search Server system requirements.
Software

  • Microsoft Search Server 2008 ( including Express Edition ).
  • Microsoft Search Server 2010 ( including Express Edition ).

Backup Target

Backup can be performed to the following disk-based storage targets:

  • Local (internal) storage of the backup repository server.
  • Direct Attached Storage (DAS) connected to the backup repository server, including external USB/eSATA drives and raw device mapping (RDM) volumes.
  • Storage Area Network (SAN). Backup repository server must be connected into the SAN fabric via hardware HBA or software iSCSI initiator, and the corresponding volumes must be seen in the Microsoft Windows Disk Management snap-in.
  • Network Attached Storage (NAS) able to represent itself as CIFS (SMB) share (direct operation), or NFS share (must be mounted on a Linux backup repository server).

Tape

Hardware

LTO3 or later tape libraries (including VTL) and standalone drives are supported. Tape device must be directly attached to backup server ( via SAS/FC/iSCSI ).

Software

  • Device-specific, vendor-supplied OEM driver for Windows must be installed. Devices appearing in Windows Device Manager as Unknown or Generic are not supported.
  • No other backup server must be interacting with the tape device.



Başka bir yazimizda görüşmek dileğiyle….
